IPN-8U Network switching module

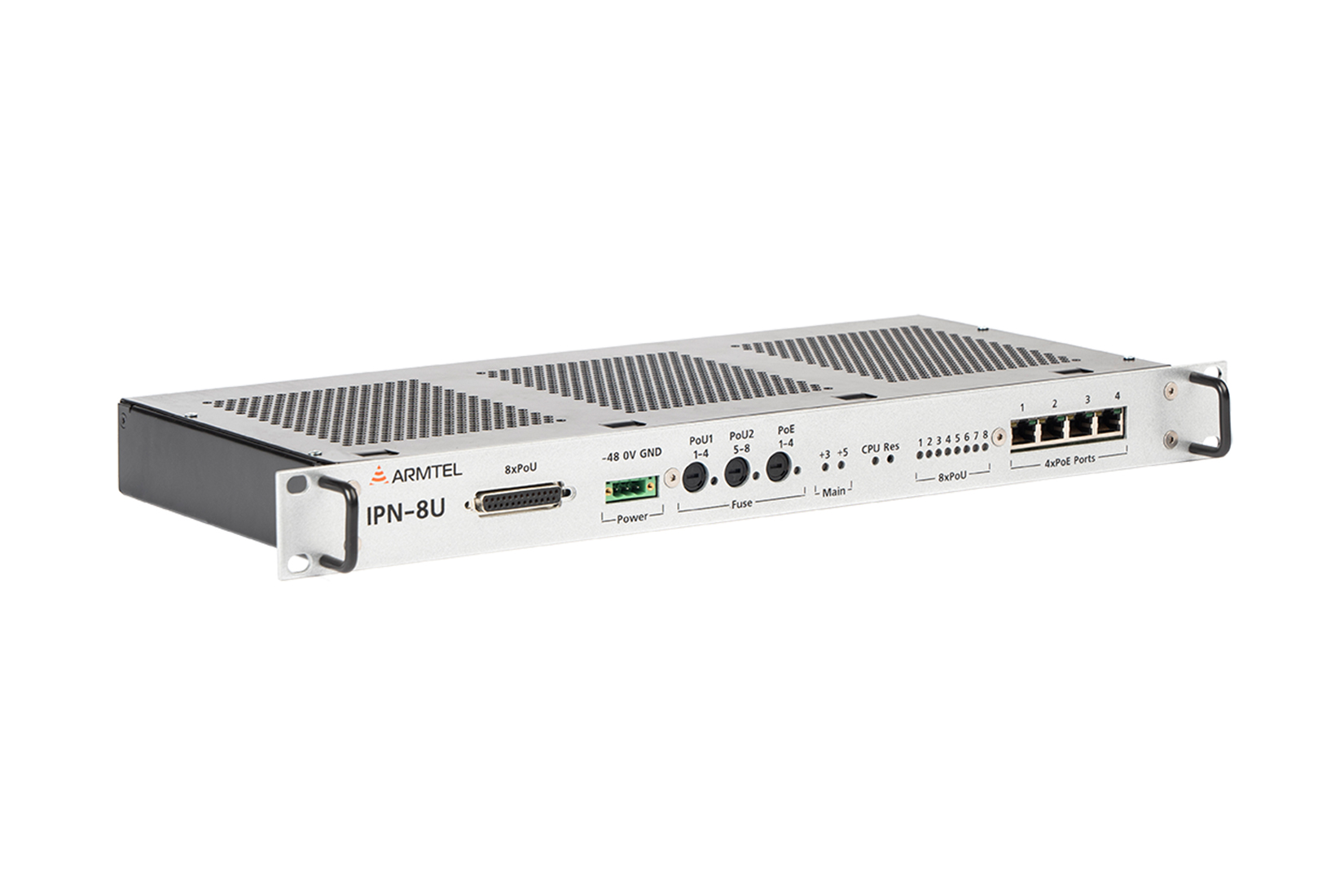

Network switching module IPN-8U is designed for use in decentralized Intercom and PA/ GA system. IPN-8U is a compact switching unit for 8 subscribers with Uk0-interface and 4 FastEthernet ports for connection to IP-network. All Uk0-interfaces are equipped with Powerover-U function – “phantom” power supply of subscribers with automatic protection against over-load. Ports of the built-in FastEthernet switch support PoE according to IEEE 802.3af Class 0, and can be used to connect and feed IP-subscriber devices.

Download image

Parameter

Value

Rated power supply voltage

-48 V

Operating voltage

from -36 V to -60 V

Maximum power consumption of IPN-8U (without
PoU, PoE), max

9,1 W

Maximum load current of each Uk0 port

300 mA

Maximum distance to a Uk0 subscriber unit

6,0 km

Number of Uk0 interfaces

8 ports with PoU

Inbuilt FastEthernet switch (10/100 Mb/s)

4 ports with PoE

Power Source unit class acc. to standard PoE IEEE
802.3af-2003

Class 0

Nominal output voltage of PoE

-48 V

Maximum output power of PoE source, per port

15,4 W

Operating temperature

from -5˚C to +55˚C

Air humidity

up to 80 % at +25˚С

Atmospheric pressure

from 84 to106,7 kPa

Electrical safety class

III

Dimensions, max

482×231×43 (19" 1U) mm

Maximum weight (without connection cable weight)

2,5 kg

Network switching module IPN-8U is designed for use in decentralized Intercom and PA/GA system Armtel IPN. IPN-8U is a compact switching unit for 8 subscribers with Uk0-interface and 4 FastEthernet ports for connection to IP-network. All Uk0-interfaces are equipped with Powerover-U function – “phantom” power supply of subscribers with automatic protection against over-load. Ports of the built-in FastEthernet switch support PoE according to IEEE 802.3af Class 0, and can be used to connect and feed IP-subscriber devices.

Connection of up to 8 ARMTEL subscriber with Uk0-interface at a distance up to 6 km;
Provision of power supply for subscriber devices via the Uk0-interface;
Connection of up to 4 IP-devices or network equipment with Ethernet 100BaseT interfaces and switching of IPconnections between them;
Providing power supply to IP devices using PoE;
Programming keys with indication on all devices connected to Uk0-interfaces and storing settings and config-uration data;
Ability to register negotiations using certified equipment and software;
Indication of connection status on keys of digital devices with Uk0-interface;
Switching of the connected digital subscriber devices with the Uk0-interface to each other and to other sub-scribers of the IPN communication system according to the configuration data;
Activation of the built-in relay of DW \ DW Ex callstations and ACM control lines (except for a group call);
Support for SIP-based communications between digital subscriber devices with Uk0-interface and duplex subscribers;
LED indication of the status of subscriber U-interfaces and Ethernet ports;
Easy maintenance, built-in self-diagnosis and remote administration.
