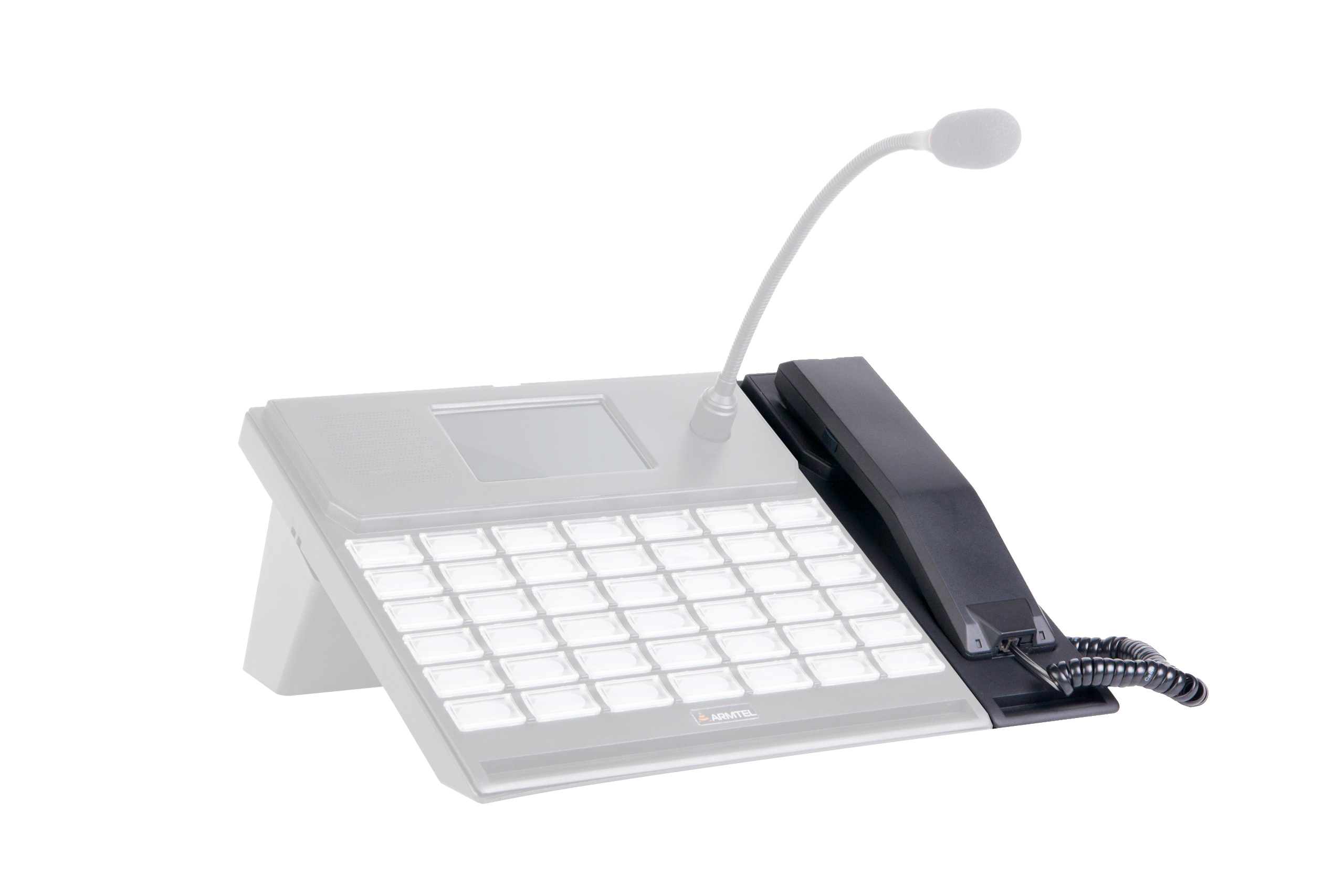

TOP-HS-IP2 Handset unit

TOP-HS-IP2 Handset unit is designed for enhancing the functionality of TOP-DIS-IР2 desktop call station RMLT.465311.009 and TOP-PAD-IP2 RMLT.465239.001 panel-mounted call station manufactured by LLC Armtel.

Download image

Parameter

Value

Rated voltage, V

5,0

Supply voltage range, V

4,75…5,25

Maximum current consumption, no more than, А

0,02

Power consumption, no more than, W

0,1

Digital communication line with TOP-DIS-IP2 and TOP-PAD-IP2

I^2C (Armtel)

Electrical safety class under GOST IEC 61140-2012

III

Protection degree provided by shells

IP42

Climatic category according GOST 15150-69

NF4.1^1)

Ambient temperature range, ºC

from -20 to +40

Atmospheric pressure, kPa

from 84
to 106,7

Air relative humidity at the temperature of 25 °С, %

up to 80

Overall dimensions, no less than ,mm

77×267×48

Weight, kg

(0,7 ± 5 %)

ТОР-HS-IP2 Handset can be applied together with TOP-DIS-IР2 master call station in distributed and centralized digital intercom and PA/GA communication systems (based on allotted SIP server manufactured by Armtel LLC) at metal, chemical, oil-processing, oil and gas, energy and transport industries or at facilities of the same type. ТОР-HS-IP2 is designed for installation in operator control rooms, offices and premises.

TOP-HS-IP2 performs the following functions:
− Duplex communication for subscribers using TOP-DIS-IР2 Desktop call station or TOP-PAD-IP2 Desktop intercom station connected to TOP-HS-IP2;
− switching the active sound path when lifting the handset from the base stand to it;
− switching the active sound path to the built-in speaker and “Gooseneck” microphone when installing the handset on the base stand.
Configuration of TOP-HS-IP2 shall be carried out using the personal computer of the IPN network administrator on which IPN2 RU.RMLT.00041-01 IPN Config Tool software configuration application is installed.
