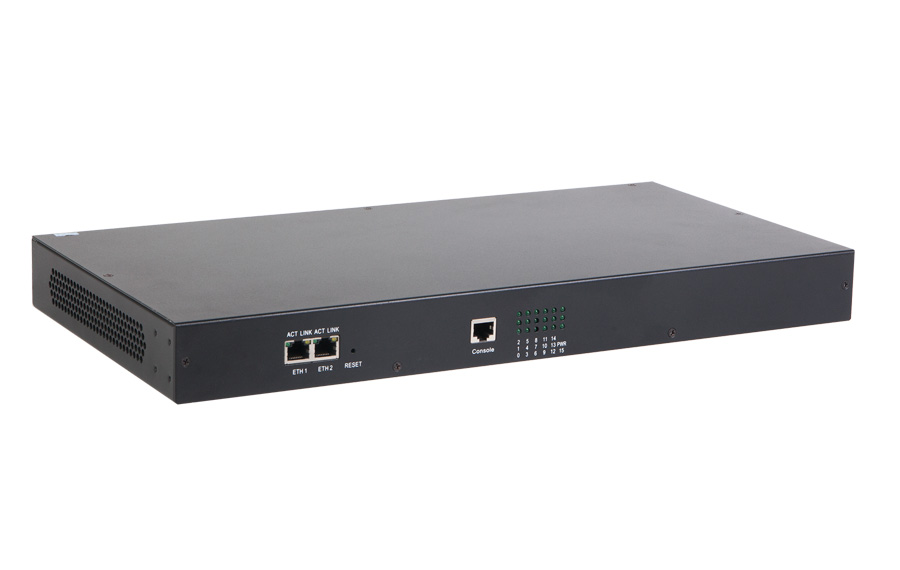

DSLAM16-IP2 Multiplexer

DSLAM16-IP2 Multiplexer is the ADSL-router which provides access to equipment within the Armtelics intercom and PA/GA system. DSLAM16-IP2 provides connection of user equipment via ADSL at downstream rate up to 24 Mb/s and distance up to 5.5 km. DSLAM16-IP2 has 10BaseT/100BaseTX Ethernet uplink port.

Download image

Parameter

Value

Power supply

from 100 to 265 VAC 50/60Hz

Maximum power consumption

20 W

Number of ADSL subscribers

NCommunication interface

Ethernet 10 / 100 Mb/s

Configuration through the command line interface

RS232 (TTL)

DSL cable type

Twisted pair

Communication protocols

IEEE 802.3, IEEE802.3u, ANSIT1.413, ITU G.992.1, ITU G.992.2, ITU G.992.3, ITU G.992.5

Operating modes

1483 Bridge/PPPoE/PPPoA/DHCP/IPoA

Operating temperature

from -10˚C to +65˚C

Air humidity

Up to 95 %

DSLAM16-IP2 Multiplexer is the ADSL-exchange which provides access to equipment within the Armtel intercom and PA/GA system. DSLAM16-IP2 provides connection of user equipment via ADSL at downstream rate up to 24 Mb/s and distance up to 5.5 km. DSLAM16-IP2 has 10BaseT/100BaseTX Ethernet uplink port.

Simultaneous access for 16 ADSL subscribers;
Up to 5.5 km distance to user equipment;
Connection with the network via the 10BaseT / 100BaseTX Ethernet interface;
Controlled by the HTTP, TELNET and CLI protocols;
SNMP support.

DSLAM16-IP2 Multiplexer
