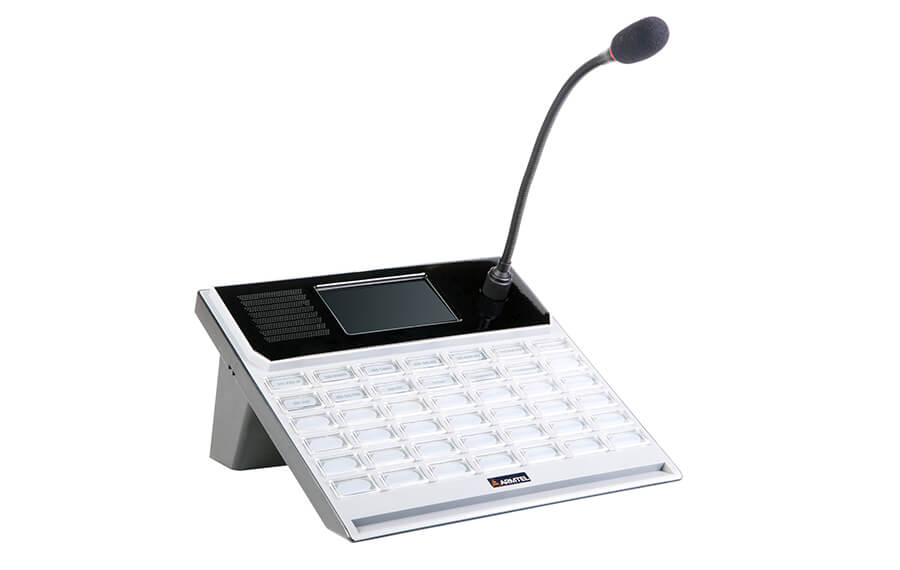

DIS-TOP Digital Desktop Call Station

DIS-TOP Digital desktop call station is designated for use as a subscriber device or operator console at industrial and transportation enterprises within Armtel DCN intercom and PA/GA systems. DIS-TOP call station is installed at offices and control rooms.

Download image

Parameter

Value

Rated voltage

48 V

Supply voltage range

from 36 to 60 V

Reverse polarity protection

yes

Standby consumption current

100 mA

Maximum consumption current

280 mA

Sound signal bandwidth

from 300 to 6800 Hz

Communication interface

Uk0

Communication protocol

«Armtel»

Built-in amplifier power at nominal signal level

(1,0 ± 0,1) W

Electrical protection class by GOST IEC 61140-2012

III

Protection level provided by shells by GOST 14254-2015

IP42

Climatic version, atmosphere type by GOST 15150-69

NF4.1

Ambient air permissible temperature range

from -20 to +50 ºC

Relative humidity at 25 ºC

up to 80 %

Dimensions on a stand and with raised microphone

275×406×245 mm

Maximum weight

(1,32 ± 0,05) kg

DIS-TOP digital master call station is designated for use as a subscriber device at industrial and transportation enterprises within Armtel DCN Intercom and PA/GA communication systems, produced by Armtel LLC.
DIS-TOP is installed on desktop in operator control rooms and offices.
DIS-TOP master call station has 42 programmable direct call keys and allows to connect of up to 3 additional ЕС-ТОР expansion units with 42 keys each.

Installation: table, wall-mounted, embedded into a work surface (table top);
42 keys and graphical 4.3” TFT display with LED backlight;
Connection of up to 3 additional ЕС-ТОР expansion units, up to 42 keys each;
Two-way loud-speaking simplex communication by integrated loudspeaker, microphone and direct call keys with LED indication;
Connection by pre-programmed direct call keys, memorizing and repeating of last call;
Gooseneck microphone with wide frequency range and LED indication for incoming or outgoing call;
Display of DIS-TOP provides information about number, date, time and type of communication, as well as numbers of calling and called subscribers;
Four-color backlight of the direct call keys for indication of incoming and outgoing calls, type of communication, busy subscriber, unanswered and last calls;
Speakerphone for loud-speaking communication with duplex subscribers;
Volume control of integrated loudspeaker, headset loudspeaker and call signal with the help of pre-programmed keys;
Reliable communication via two-wire digital Uk0-interface line to distance of 6 km.
